Acoustics

This tutorial covers Pressure Acoustics, Frequency Domain (acpr) in Elmer Studio: radiation and scattering problems, the field outside the meshed air domain, and the far-field plots used for loudspeakers. It follows the vented-loudspeaker part of the COMSOL guide Essentials of Postprocessing and Visualization and the COMSOL blog post How to Use the Boundary Element Method in Acoustics Modeling, with stand-in models.

What you will learn:

  • close an air domain with Spherical Wave Radiation and drive it with a Normal Acceleration or an incident plane wave;

  • compute the pressure anywhere outside the mesh with Exterior Field Calculation;

  • plot isosurfaces with a filled level legend, a Grid 3D dataset with a Multislice, and a Parametric Curve 3D;

  • draw a Radiation Pattern (polar and 3D) and a Directivity plot over frequency;

  • check the method against two closed-form solutions: a pulsating sphere and a rigid spherical scatterer.

The checked numbers come from tests/test_tutorial_acoustics.py. The screenshots come from the GUI walkthrough tools/screenshot_acoustics.py.

Elmer has no boundary elements. Where COMSOL couples FEM with BEM or uses a perfectly matched layer, Elmer Studio closes the air domain with Spherical Wave Radiation and evaluates the field outside it with the Exterior Field Calculation, a Kirchhoff–Helmholtz integral over a closed surface of the FEM domain. Elmer’s HelmholtzSolver uses the eiωt convention, as COMSOL does.

Concepts

Feature or variable What it does

Spherical Wave Radiation

Boundary condition for outgoing spherical waves (3D, 2D axisymmetric) or cylindrical waves (2D) from the Source location. Optionally adds an incident plane wave, Incident pressure field Plane wave, for scattering in the total-field formulation.

Exterior Field Calculation

Kirchhoff–Helmholtz integral over the selected closed surface. Provides acpr.efc1.pext (pressure, real part), acpr.efc1.abs_pext and acpr.efc1.Lp_pext (sound pressure level) for the first such feature. Inside the mesh these variables take the computed pressure, outside it the integral. With an incident plane wave they describe the scattered field.

acpr.p_t, acpr.p_im

Total acoustic pressure, real and imaginary part.

acpr.Lp

Sound pressure level of the computed pressure, in dB (re 20 µPa, from the RMS value).

acpr.p_s, acpr.Lp_s

Scattered pressure (real part) and its level, available when an incident plane wave is defined.

See Pressure Acoustics, Frequency Domain (acpr) for every setting and Physics interfaces for how physics features are added.

The physics-controlled mesh of an acoustics model is calibrated to at most λ/5 at the highest study frequency, so a frequency sweep refines the mesh for its top frequency.

Pulsating sphere: verification

A sphere of radius a = 0.1 m oscillates radially in air. The air between the sphere and an outer sphere of radius 0.6 m is modeled in 2D axisymmetry. The exact pressure is

\(p(r) = \rho c\, u\, \frac{ika}{1+ika}\,\frac{a}{r}\,e^{-ik(r-a)}\)

with u = an/(iω) the velocity amplitude for the normal acceleration an = 1 m/s², and k = ω/c.

Model

  1. Click File  New, choose Model Wizard, then 2D Axisymmetric. Under Acoustics select Pressure Acoustics, Frequency Domain (acpr), click Add, then Study, choose Frequency Domain and click Done.

  2. Click Geometry  Circle: Radius 0.6, Sector angle 180, Rotation -90. This is the half disk on the r ≥ 0 side of the axis.

  3. Click Geometry  Circle: Radius 0.1.

  4. Click Geometry  Difference: the half disk in Objects to add, the small circle in Objects to subtract. Press F8.

  5. Click Home  Add Material and add Air. In its Material Contents table set Speed of sound to 343 and Density to 1.2 (the values the reference solution uses).

  6. Click Physics  Boundaries  Normal Acceleration and click the arcs of the small sphere. Keep Inward normal acceleration at 1.

  7. Click Physics  Boundaries  Spherical Wave Radiation and click the arcs of the outer sphere. Keep the Source location at the origin.

  8. Click Physics  Boundaries  Exterior Field Calculation and click the arcs of the outer sphere.

  9. Click Mesh 1 and set Element size to Extremely fine.

  10. Click Step 1: Frequency Domain and set Frequencies to 250 500 1000. Click Home  Compute.

Plots

The default plot groups show the acoustic pressure and the sound pressure level in the r-z plane. To see the field beyond the mesh, click Results  Polar Plot Group, delete Line Graph (Polar) 1 (right-click, Delete), select the plot group and click Results  Radiation Pattern. Set Evaluation distance to 3[m], five times the mesh radius. A pulsating sphere radiates equally in every direction, so the curve is a circle.

Check the results

test_pulsating_sphere_radiation_and_exterior_field checks at 250, 500 and 1000 Hz:

  • In the mesh, for 0.2 m < r < 0.5 m, the computed pressure agrees with the exact solution within 0.2 % of its maximum.

  • The Kirchhoff–Helmholtz integral over the outer boundary gives the pressure at r = 3 m (five times the mesh radius, nine directions from −80° to 80°) within 1.5 %.

test_pulsating_sphere_3d_exterior_field repeats the problem in 3D: an outer sphere of 0.5 m, the default (λ/5) physics-controlled mesh, 500 Hz, and the Exterior Field Calculation on the outer surface. At four points 1.8 m to 2.1 m from the center (about four times the mesh radius) the exterior field agrees with the exact solution within 2 %.

Spherical scatterer: BEM benchmark

A rigid sphere of radius 0.25 m sits in a plane wave of amplitude 1 Pa traveling along +z. COMSOL publishes this case as a BEM benchmark; here the air domain (radius 1 m) is FEM, the incident wave enters through the Spherical Wave Radiation boundary, and the scattered field beyond the mesh comes from an Exterior Field Calculation on the sphere surface.

Model and study

  1. Click File  Application Libraries  Spherical scatterer - acoustic scattering benchmark (2D axisymmetric).

  2. Look at the physics features under Pressure Acoustics, Frequency Domain:

    • Spherical Wave Radiation 1 on the outer arc, with Incident pressure field Plane wave, Pressure amplitude 1[Pa] and Wave direction +z direction;

    • Exterior Field Calculation 1 on the sphere surface;

    • the sphere surface itself keeps the default Sound Hard Boundary (Wall).

  3. The study computes 500 Hz and 1400 Hz (ka ≈ 2.3 and 6.4). Click Home  Compute.

With an incident plane wave, the variables acpr.p_s and acpr.Lp_s give the scattered field (total minus incident) inside the mesh, and acpr.efc1.Lp_pext gives the scattered field anywhere.

Revolution 2D plot

  1. Click Results  Revolution 2D. Set Dataset to Study 1/Solution 1, Start angle to -90, Revolution angle to 270 and Number of layers to 72.

  2. Click Results  3D Plot Group, rename it Sound Pressure Level, 500 Hz and set Dataset to Revolution 2D 1. In the solution list below it, which reads Parameter value (freq (Hz)) for this study, choose freq=500 Hz.

  3. In Surface 1 set Expression to acpr.Lp. Click Plot.

3D view of the revolved air domain around the sphere colored by sound pressure level from 87 to 96 dB at 500 Hz
Figure 1. Total sound pressure level around the scatterer at 500 Hz, revolved through 270°

Polar plot of the scattered field

  1. Click Results  Polar Plot Group and rename it Scattered field at 3 m. Right-click Line Graph (Polar) 1 and choose Delete.

  2. Select the plot group and click Results  Radiation Pattern. Expression is acpr.efc1.Lp_pext by default.

  3. Set Evaluation distance to 3[m], Number of angles to 181, Start angle to -90, End angle to 90 and Parameter values (indices from 1, empty = current) to 1 2. Click Plot.

In an axisymmetric model the angle runs in the r-z half plane, so 90° is the +z axis, the direction in which the incident wave travels. At 1400 Hz the scattered field has a strong lobe in that direction.

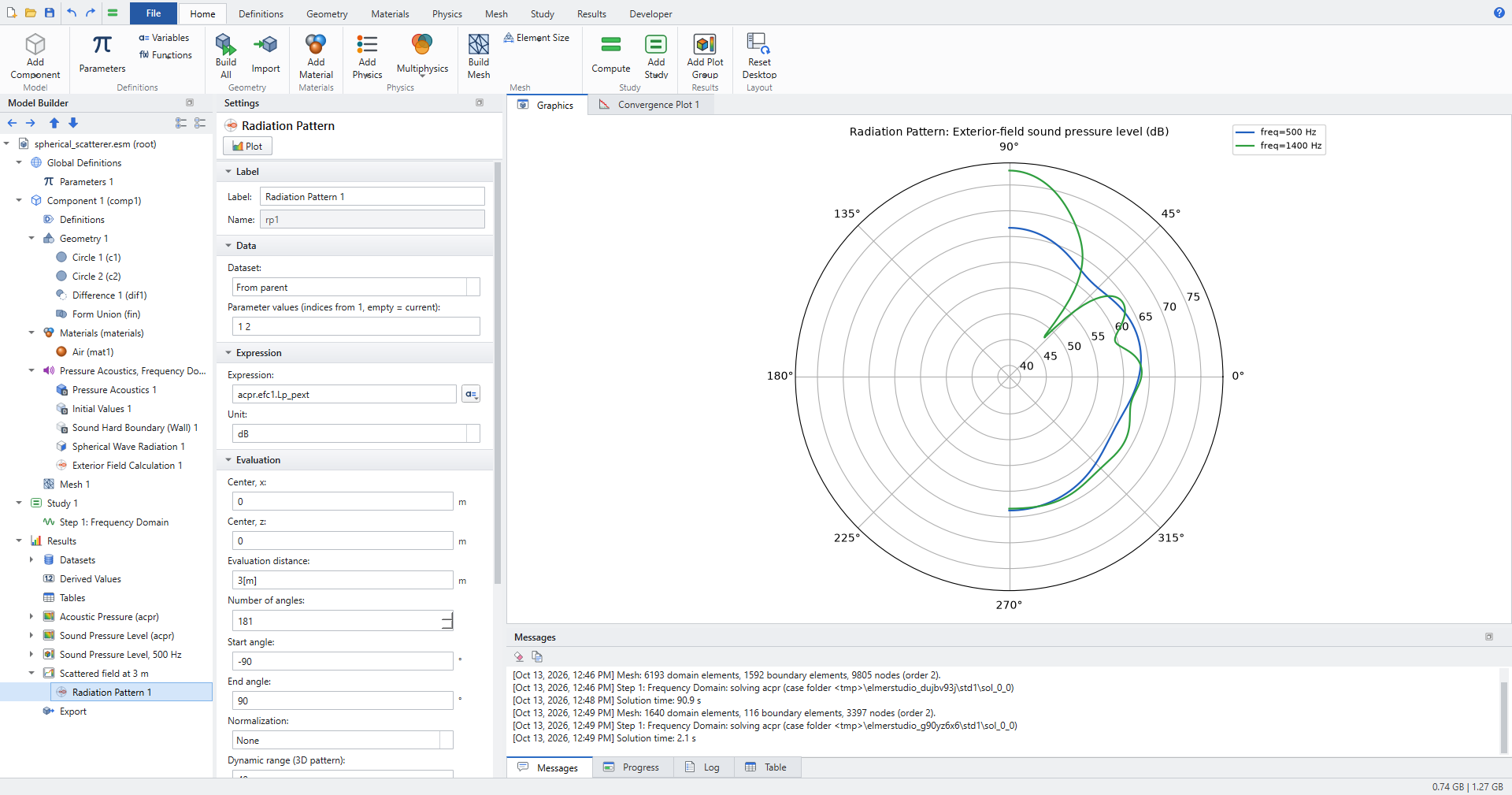

Polar Radiation Pattern of the exterior-field sound pressure level at 3 m for 500 Hz and 1400 Hz from -90 to 90 degrees
Figure 2. Scattered sound pressure level at 3 m for 500 Hz and 1400 Hz

Check the results

test_spherical_scatterer_benchmark compares with the analytic series for a rigid sphere, at 500 Hz and 1400 Hz:

  • acpr.p_s (with its imaginary part) inside the mesh, for 1.2a < r < 0.8R, agrees within 5 % of its maximum.

  • acpr.efc1.Lp_pext at 3 m, beyond the mesh, on 13 angles from 0° to 180°, agrees within 0.8 dB.

Loudspeaker radiation

The stand-in loudspeaker is a closed box of 20 × 20 × 30 cm with a piston of 6 cm radius on its top face, radiating into a sphere of air of radius 0.5 m. The piston has a normal acceleration of 1 m/s². The outer sphere has Spherical Wave Radiation and an Exterior Field Calculation, so the field is available far beyond the mesh.

Model and study

  1. Click File  Application Libraries  Loudspeaker radiation - 3D acoustics, exterior field and radiation patterns.

  2. Click Step 1: Frequency Domain and set Frequencies to 200 300 450 650 900 (the screenshots use these five frequencies; the example’s own list also works).

  3. Click Home  Compute. In the run shown in the screenshots the solve took about two minutes.

Isosurfaces of the pressure

  1. Click Results  3D Plot Group and rename it Acoustic Pressure, Isosurfaces. Right-click Surface 1 and choose Delete.

  2. Select the plot group and click Results  Isosurface. Set Expression to acpr.p_t, Total levels to 8 and Color table to Wave. Legend type is Filled by default: the legend shows one block per level interval. Click Plot.

Nested isosurfaces of the total acoustic pressure above the box outline, with a blocked red-white-blue legend
Figure 3. Isosurfaces of the acoustic pressure at 900 Hz, with a filled level legend

Grid 3D and Multislice beyond the mesh

A Grid 3D dataset is a regular grid of points. Inside the mesh it takes the computed values; the exterior-field variables are defined everywhere, so the grid can reach beyond the air domain.

  1. Click Results  Grid 3D. Set Dataset to Study 1/Solution 1. Set x minimum (empty = dataset bounds) to -1.5, x maximum to 1.5 and x resolution (points) to 35, and the same for y and z.

  2. Click Results  3D Plot Group and rename it Sound Pressure Level, Grid 3D.

  3. In Surface 1 set Expression to acpr.Lp. Right-click Surface 1, choose Selection and click the box and piston faces, everything except the outer sphere.

  4. Select the plot group and click Results  Multislice. Set its Dataset to Grid 3D 1, Expression to acpr.efc1.Lp_pext, x-planes to 1, y-planes to 1 and z-planes to 0. Click Plot.

A plot can use its own dataset inside a plot group, so the Multislice draws on the grid while the Surface draws on the solution.

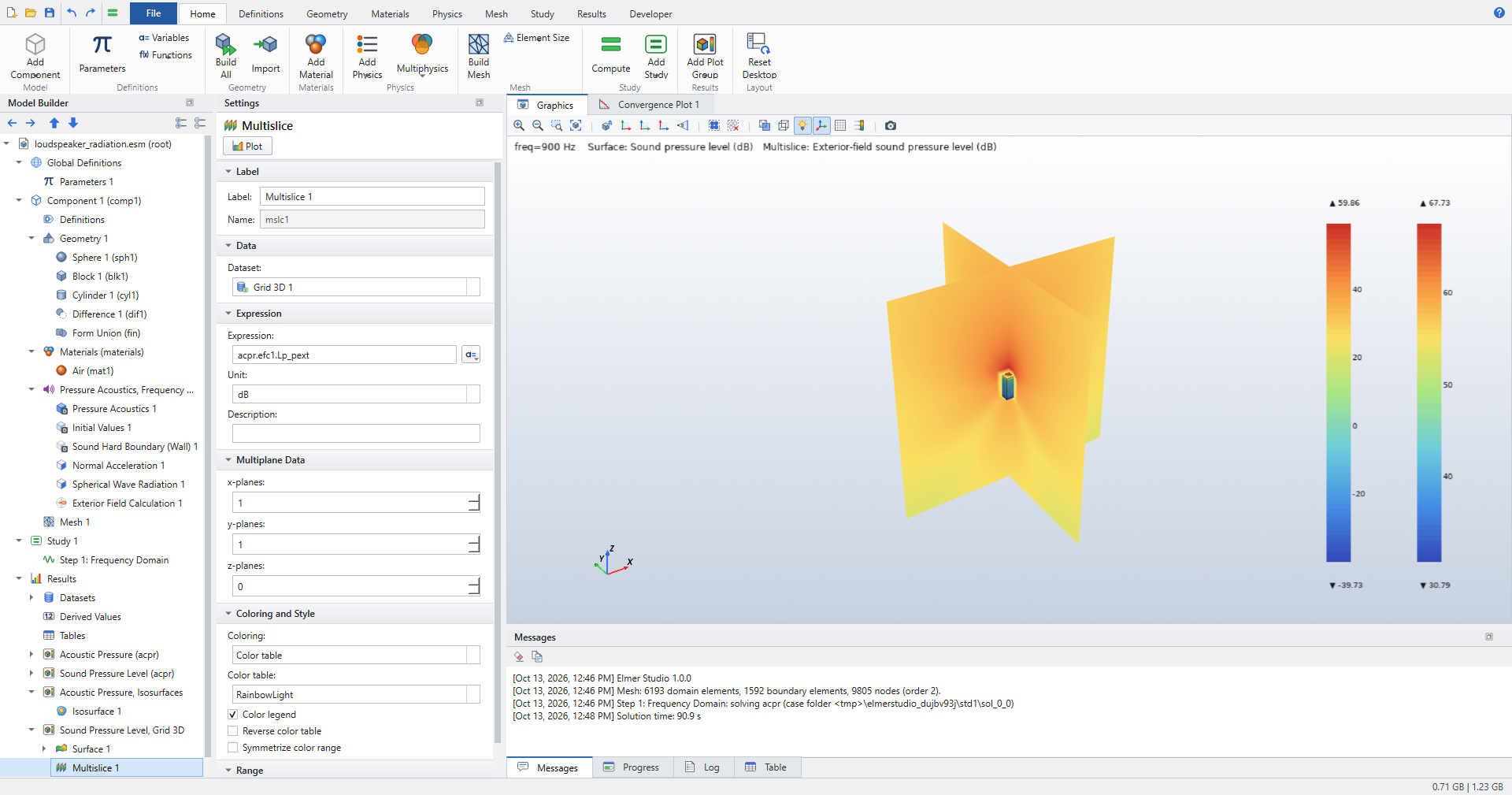

Two orthogonal slices through a 3 m grid colored by exterior-field sound pressure level, with the loudspeaker box at the center
Figure 4. Sound pressure level on two planes of a 3 m grid, three times the size of the mesh

Parametric Curve 3D: a spiral around the speaker

  1. Click Results  Parametric Curve 3D and rename it Spiral. Set Dataset to Study 1/Solution 1, Minimum to 0, Maximum to 1 and Resolution (points) to 600.

  2. Under Expressions set

    • x: (0.6+0.6*s)*cos(8*pi*s)

    • y: (0.6+0.6*s)*sin(8*pi*s)

    • z: -0.9+1.8*s

      The spiral starts at a radius of 0.6 m, outside the 0.5 m mesh, and widens to 1.2 m while it rises from z = −0.9 m to 0.9 m.

  3. Click Results  3D Plot Group and rename it Sound Pressure Level along a spiral. In Surface 1 set Expression to acpr.Lp and add a Selection with the box and piston faces, as above.

  4. Select the plot group and click Results  Line. Set Dataset to Spiral, Expression (empty = uniform color) to acpr.efc1.Lp_pext, Line type to Tube and Tube radius (fraction of model size) to 0.012. Click Plot.

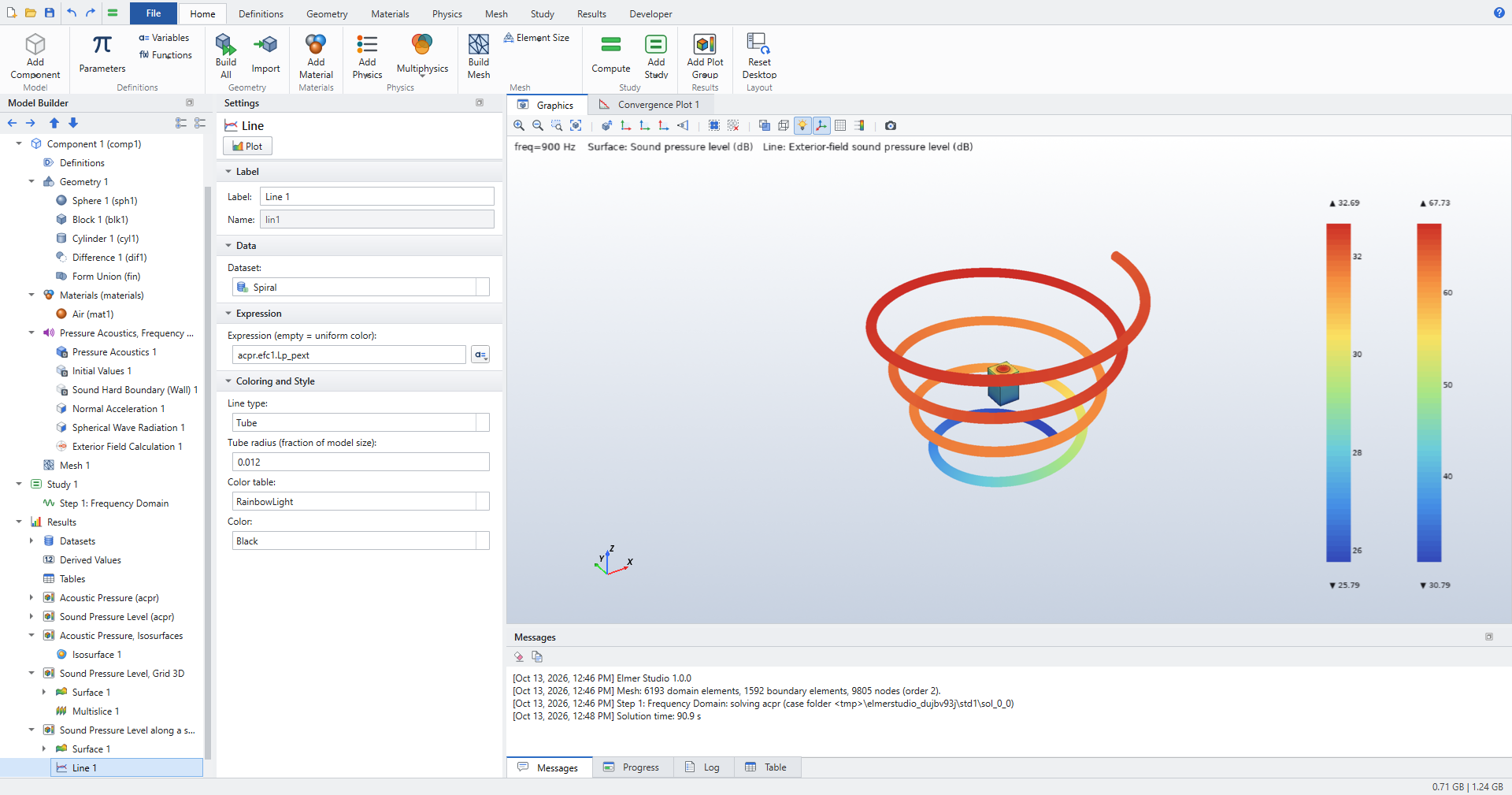

A tube spiral around the loudspeaker box colored by sound pressure level from about 26 to 33 dB
Figure 5. Exterior-field sound pressure level along the spiral

Radiation Pattern, polar

  1. Click Results  Polar Plot Group and rename it Radiation Pattern. Right-click Line Graph (Polar) 1 and choose Delete.

  2. Select the plot group and click Results  Radiation Pattern. Keep Expression acpr.efc1.Lp_pext.

  3. Set Evaluation distance to 1[m], Plane to xz-plane (angle from x toward z), Number of angles to 181, Start angle to 0, End angle to 360 and Parameter values (indices from 1, empty = current) to 1 3 5. Click Plot.

Parameter values 1, 3 and 5 are 200 Hz, 450 Hz and 900 Hz. The piston faces +z, which is 90° in this plane. The pattern is almost round at 200 Hz and loses level toward the back (270°) as the frequency rises.

Polar plot of the exterior-field sound pressure level at 1 m for three frequencies, with a dip toward 270 degrees at 900 Hz
Figure 6. Radiation pattern at 1 m in the xz-plane for 200, 450 and 900 Hz

Radiation Pattern, 3D

  1. Click Results  3D Plot Group and rename it Radiation Pattern 3D.

  2. In Surface 1 set Expression to acpr.Lp, Coloring to Uniform, Color to Gray and clear Color legend. Add a Selection with the box and piston faces.

  3. Select the plot group and click Results  Radiation Pattern. Set Evaluation distance to 1[m], Number of angles to 180 and Dynamic range (3D pattern) to 30. Click Plot.

In a 3D plot group the Radiation Pattern is drawn on a sphere of directions: the distance from the center follows the level, and values more than the dynamic range below the maximum are drawn at the center.

Closed 3D radiation pattern surface colored by sound pressure level, larger toward +z
Figure 7. 3D radiation pattern at 900 Hz

Directivity

  1. Select Results and click Results  Directivity. Elmer Studio adds a 1D Plot Group with a Directivity plot. Rename the plot group to Directivity.

  2. Set Evaluation distance to 1[m], Number of angles to 91, Start angle (from the axis) to -180, End angle to 180 and Contour levels to 13. Keep Reference axis +z and Normalization On-axis value = 0 dB. Click Plot.

The Directivity plot shows the level against angle and frequency (on a logarithmic axis), normalized so the on-axis value is 0 dB at every frequency.

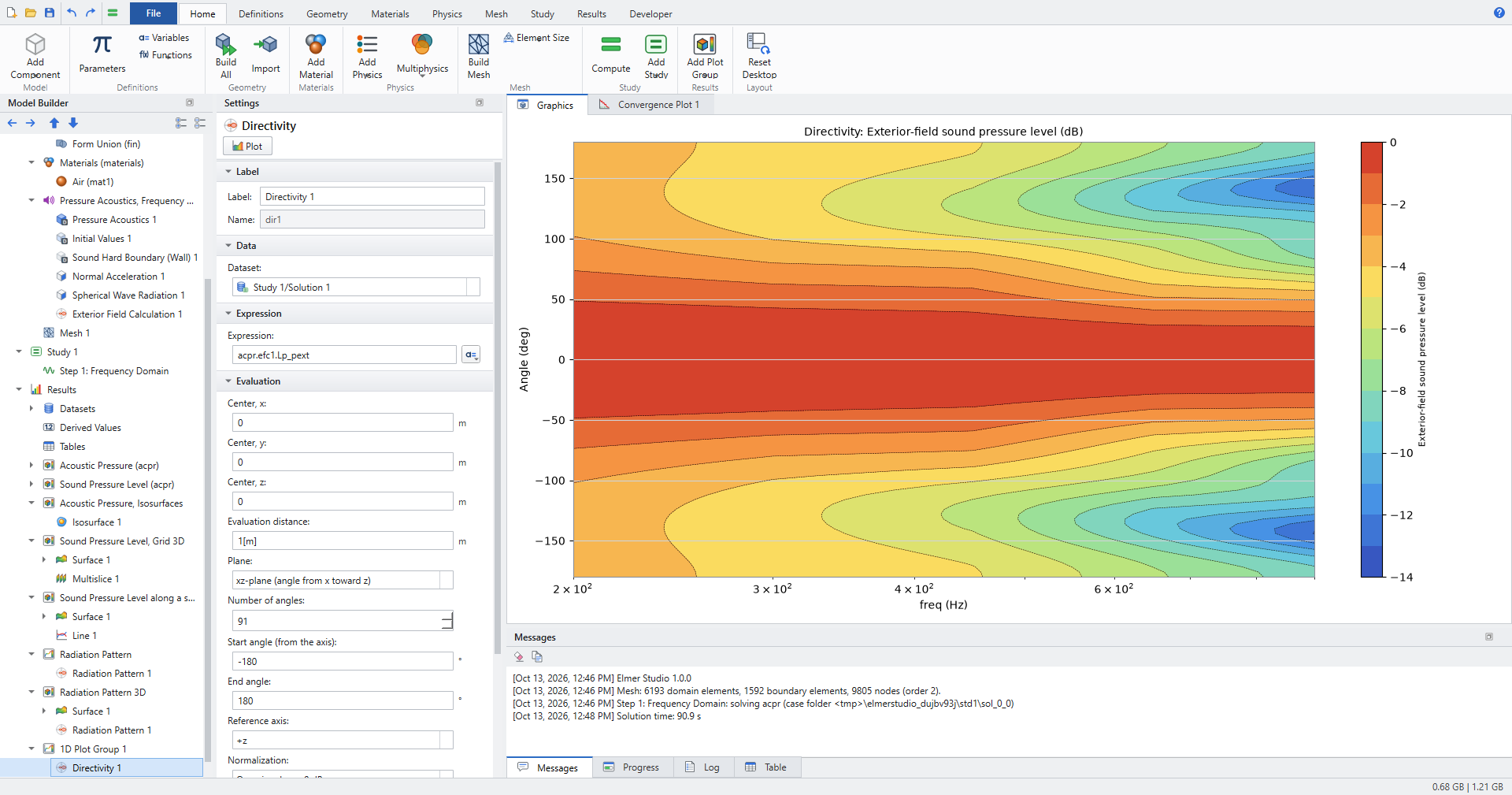

Filled contour map of the normalized exterior-field level, angle from -180 to 180 degrees against frequency 200 to 900 Hz; the level falls off the axis at high frequency
Figure 8. Directivity: level versus angle from the +z axis and frequency

Check the results

test_loudspeaker_postprocessing solves the loudspeaker at 300 Hz and 800 Hz and checks at 800 Hz:

  • A Grid 3D dataset from −1.5 m to 1.5 m (13 points per axis) gives finite acpr.efc1.Lp_pext everywhere.

  • No jump at the edge of the mesh: in eight directions, the level at 0.47 m (computed in the mesh) and at 0.53 m (Kirchhoff–Helmholtz integral) differ by less than 2 dB. Spherical spreading alone accounts for 1.0 dB.

  • Far away the level falls by 3 dB to 9 dB per doubling of distance (median at about 1 m minus median at about 2 m), around the −6 dB of spherical spreading.

  • The polar Radiation Pattern is labeled Exterior-field sound pressure level in dB, and the level in front (+z) exceeds the level behind by more than 1 dB.

  • The 3D Radiation Pattern draws in a 3D plot group.

  • The Directivity is 0 dB on the axis at both frequencies (to 1e-9), and no direction more than 60° off the axis is louder than 0.5 dB.

  • The level along a spiral (Parametric Curve 3D) is finite and varies along the curve.

  • Isosurfaces with 8 levels have a filled legend of 9 blocks.
