Electrochemistry: current distribution

Four small models, each with a closed-form answer, take you through the Secondary Current Distribution interface. They are the models of the regression suite tests/test_electrochemistry.py, built here by hand in the GUI. The numbers in each Check the results section are the ones the tests assert.

If you know COMSOL’s Electrochemistry Module, the workflow will feel familiar: same interface, feature and variable names. Elmer Studio is an independent project; the solver underneath is Elmer. Background on every feature is in Electrochemistry: current distribution.

What you will learn

  • Set up an electrolyte with an Electrode Surface (Butler–Volmer kinetics) and a counter electrode.

  • Read the electrode current cd.es1.Itot with a Global Evaluation.

  • Compute a polarization curve with a Parametric Sweep and plot it.

  • Model a primary current distribution in 2D axisymmetry and refine the mesh at an electrode edge.

  • Couple the kinetics to a concentration with Transport of Diluted Species (tertiary current distribution).

  • Build a wavy electrode from a Parametric Curve and mesh it with a graded Mapped mesh.

Tutorial 1: a 1D cell with Butler–Volmer kinetics

A strip of electrolyte, 100 µm wide and L = 200 µm long, with conductivity σ = 20 S/m. The anode at the bottom has Butler–Volmer kinetics with i0 = 50 A/m² and αa = αc = 0.5 at 298.15 K. The top boundary is held at φl = 0, like a counter electrode with fast kinetics. The side walls are insulated, so the current flows straight up and the model is one-dimensional.

The current density is uniform, so the ohmic drop is iL/σ and the overpotential at the anode is η = V − iL/σ. The current density therefore solves

\[i = i_{loc}\!\left(V - \frac{iL}{\sigma}\right),\qquad i_{loc}(\eta) = i_0\left(e^{\alpha_a f\eta}-e^{-\alpha_c f\eta}\right),\quad f=\frac{F}{RT}\]

which has one root that you can find with any calculator.

Create the model

  1. Choose File  New (Ctrl+N) and click Model Wizard.

  2. Click 2D.

  3. Open Electrochemistry > Primary and Secondary Current Distribution, select Secondary Current Distribution and click Add.

  4. Click Study, select Stationary and click Done.

Parameters and geometry

  1. In the Model Builder, select Global Definitions > Parameters 1 and add the parameter Vapp with expression 0.1[V] (description: cell voltage).

  2. Click Geometry  Rectangle. Set Width to 1e-4 and Height to 2e-4 (the default length unit is m).

  3. Press F8 to build all. The Messages window reports 1 domain, 4 boundaries and 4 points.

Physics

  1. Under Secondary Current Distribution, select Electrolyte 1. Set Electrical conductivity to User defined and enter 20[S/m].

  2. Choose Physics  Boundaries  Electrode Surface. Click the bottom boundary (boundary 2) in the Graphics window.

  3. In Electrode Surface 1, set:

    • Electric potential (of the electrode): Vapp

    • Kinetics expression type: Butler-Volmer

    • Exchange current density: 50[A/m^2]

    • Keep Anodic transfer coefficient and Cathodic transfer coefficient at 0.5, Temperature at 298.15[K] and Equilibrium potential at 0[V].

  4. Choose Physics  Boundaries  Electrolyte Potential, click the top boundary and keep Electrolyte potential at 0[V].

The side walls keep the default Insulation 1.

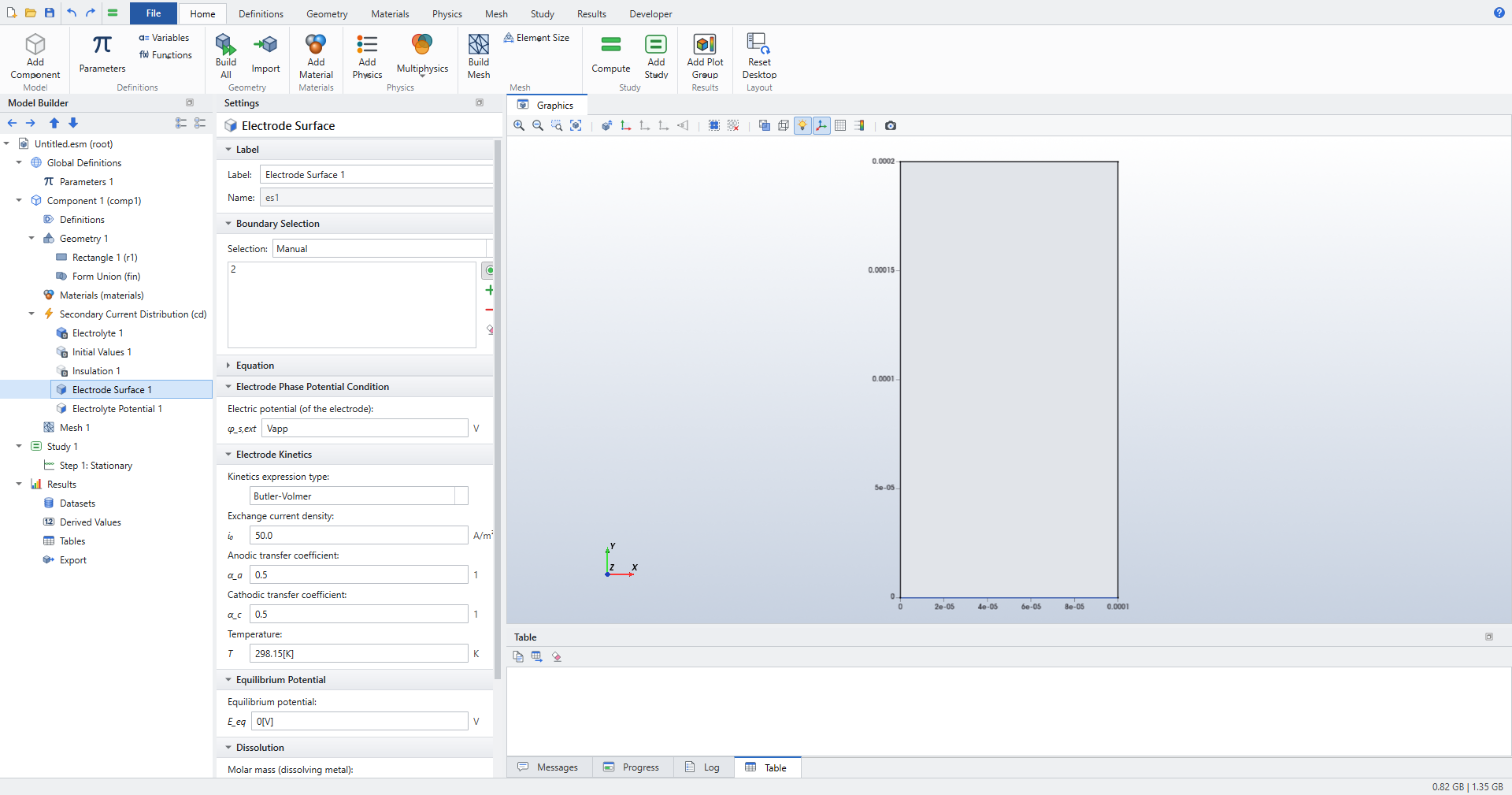

Electrode Surface settings with Electric potential Vapp and Butler-Volmer kinetics
Figure 1. Electrode Surface with Butler-Volmer kinetics on the bottom boundary of the strip
Note the electrode’s Name, es1, in the Label section. Its results are called cd.es1.Itot, cd.es1.eta, and so on, as in COMSOL.

Compute one point

  1. Click Home  Compute (Ctrl+=). The default mesh is fine: the solution is linear in y.

  2. Click Results  Global Evaluation. In Expressions, enter cd.es1.Itot with the description Anode current per unit depth, then click Evaluate.

cd.es1.Itot is a current per metre of depth in a 2D model, here 0.0321245 A/m. Divided by the 100 µm width, that is i = 321.245 A/m².

Sweep the cell voltage: a polarization curve

  1. Select Study 1 and click Study  Parametric Sweep.

  2. In Parametric Sweep 1, set Parameter name to Vapp, Parameter value list to range(0.05,0.05,0.25) and Parameter unit to V. Keep Reuse solution from previous step at Automatic: each voltage starts from the previous solution.

  3. Compute again.

  4. Select Global Evaluation 1, check that Time/parameter selection is All and click Evaluate. The table now has one row per voltage.

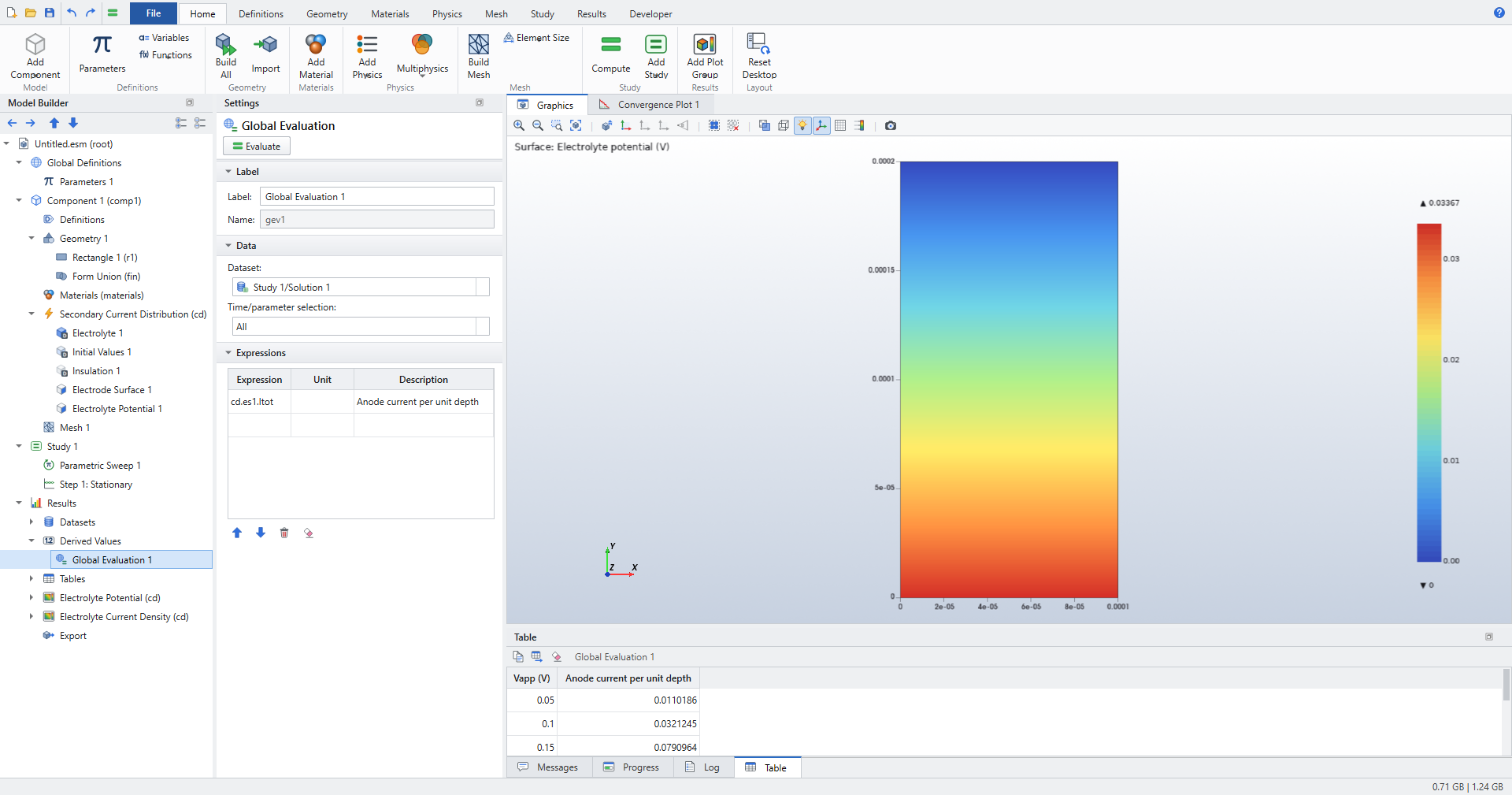

Global Evaluation of cd.es1.Itot over the sweep with the electrolyte potential plot
Figure 2. Electrolyte potential at 0.25 V and the anode current for every swept voltage

  1. With Global Evaluation 1 still selected, click Results  Global. Elmer Studio adds a 1D Plot Group with a Global plot.

  2. In the Global plot, set Expression to cd.es1.Itot, Reduction to Global (scalar expression) and Marker to Circle, then click Plot. The x-axis is the swept parameter, Vapp (V).

  3. Rename the plot group Polarization curve (F2).

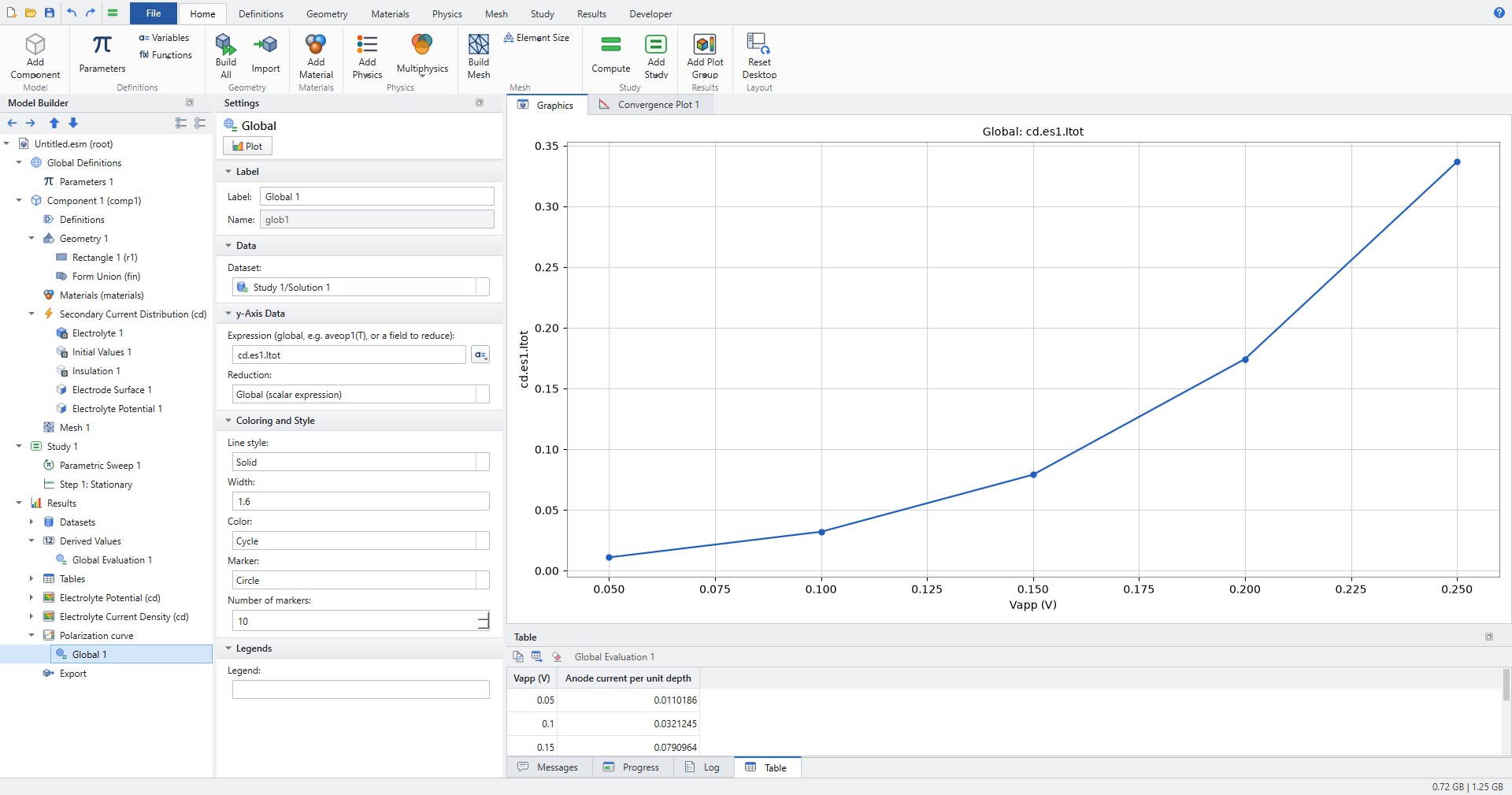

Global plot of cd.es1.Itot against Vapp
Figure 3. Polarization curve: anode current against cell voltage

Check the results

Vapp (V) cd.es1.Itot (A/m) i = Itot / 100 µm (A/m²) Ohmic drop iL/σ (V)

0.05

0.0110186

110.186

0.00110

0.10

0.0321245

321.245

0.00321

0.15

0.0790964

790.964

0.00791

0.20

0.174406

1744.06

0.01744

0.25

0.336699

3366.99

0.03367

  • Every current matches the root of \(i = i_{loc}(V - iL/\sigma)\); the test requires 1e-8 and the run agrees to about 1e-12.

  • The maximum of the electrolyte potential at 0.25 V is the ohmic drop, 0.03367 V, on the anode.

  • cd.iloc at every anode node, corners included, equals i (to 1e-8), and cd.nIl on the top boundary carries the same current out.

  • The curve rises monotonically and bends upward: Butler–Volmer kinetics dominate at low voltage, the ohmic drop grows with the current.

Try the other kinetics on the same cell: Linearized Butler-Volmer, Anodic Tafel equation, Butler-Volmer with limiting current (with Limiting current density 100[A/m^2]) or a primary electrode. The regression test checks each one against the same equation, with the matching iloc(η), to 1e-9. For a primary electrode, η = 0 and i = σV/L = 10 000 A/m² at 0.1 V.
For tabulated polarization data, add Definitions  Interpolation with Function name pol and the (η, i) pairs, choose Kinetics expression type User defined i(eta) and enter pol(eta). On this cell, with the points (0, 0), (0.05, 40), (0.1, 150), (0.2, 600), (0.3, 2000) and Vapp = 0.3 V, the current agrees with the piecewise-linear root to 1e-6.

Tutorial 2: Newman’s disc electrode (2D axisymmetric)

A disc electrode of radius a = 1 mm lies flush in an insulating plane, under an electrolyte with σ = 5 S/m. For a primary current distribution, Newman’s classic result for the resistance between the disc and infinity is 1/(4σa). Here the counter electrode is a hemisphere of radius R = 30 mm, which removes the far-field part 1/(2πσR):

\[R_{cell} = \frac{1}{4\sigma a} - \frac{1}{2\pi\sigma R} = 50 - 1.061 = 48.939\ \Omega\]

At 1 V on the disc the current is 1/Rcell = 0.020434 A. The current density is singular at the disc edge, so this model is a test of the mesh as much as of the physics.

Create the model and geometry

  1. Choose File  New, Model Wizard, 2D Axisymmetric, add Secondary Current Distribution, choose Stationary and click Done. The r axis is horizontal and z vertical.

  2. Click Geometry  Circle. Set Radius to 0.03 and Sector angle to 90: a quarter disc that becomes a hemisphere when revolved.

  3. Click Geometry  Rectangle. Set Width to 1e-3 and Height to 2.5e-4. This small rectangle only splits the bottom boundary at r = a, so the disc is a boundary of its own.

  4. Click Geometry  Union and select both objects as Input objects. Keep Keep interior boundaries on.

  5. Press F8.

Physics

  1. Select Secondary Current Distribution and set Current distribution type to Primary.

  2. In Electrolyte 1, set Electrical conductivity to User defined, 5[S/m].

  3. Add Physics  Boundaries  Electrode Surface on the disc, the bottom boundary from r = 0 to r = a (boundary 2). Set Electric potential (of the electrode) to 1[V]. The kinetics settings are ignored for a primary distribution.

  4. Add Physics  Boundaries  Electrolyte Potential on the quarter-circle arc and keep 0[V].

The rest of the bottom and the symmetry axis keep the default Insulation 1.

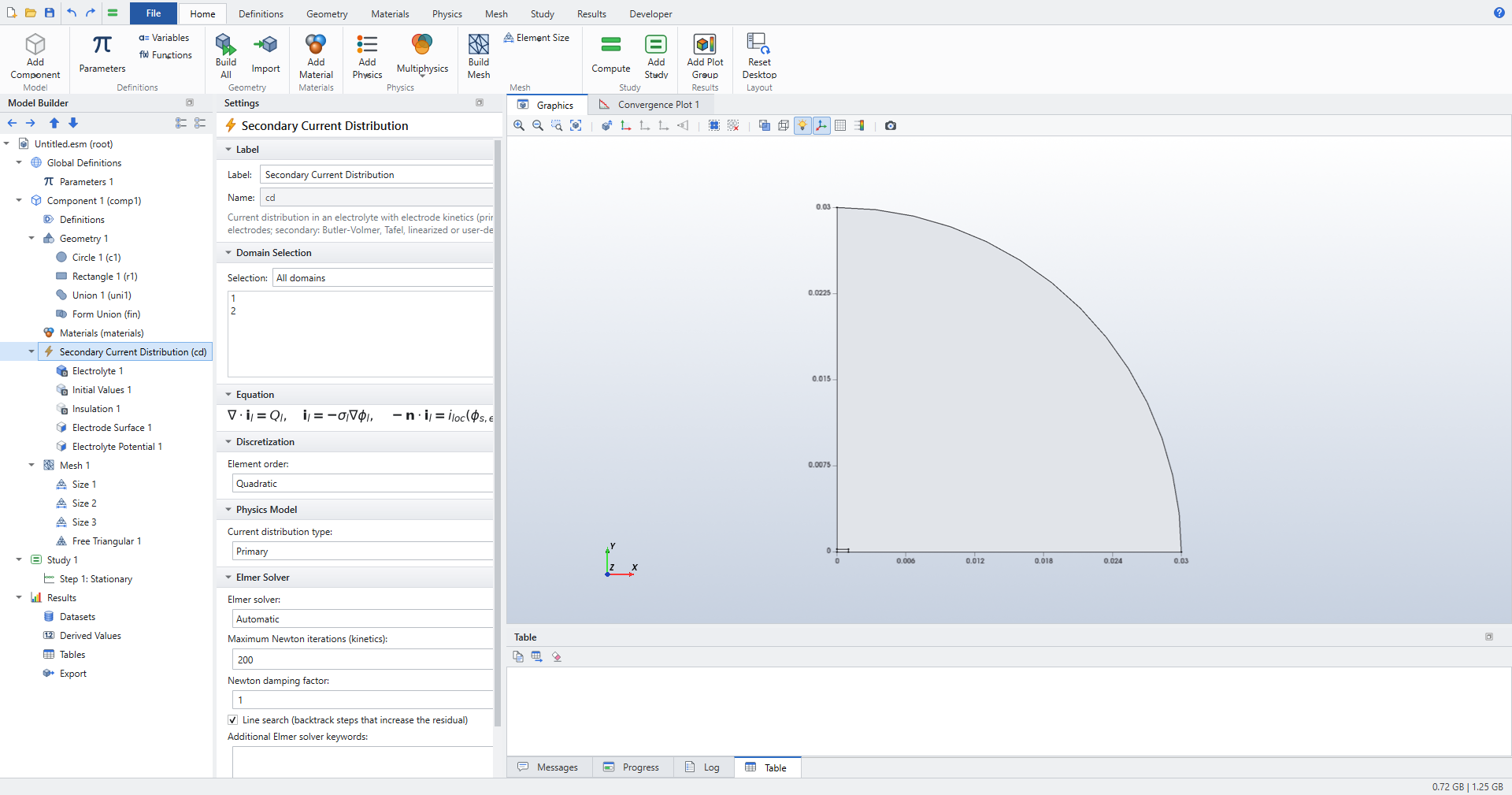

Secondary Current Distribution settings with Current distribution type Primary
Figure 4. Primary current distribution: the interface setting overrides the electrode kinetics

Mesh

The geometry is 30 mm across and the singular edge needs elements of a few micrometres.

  1. Click Mesh  Size. Elmer Studio switches Mesh 1 to a user-controlled mesh and adds Size 1, Free Triangular 1 and a second Size node, Size 2.

  2. In Size 1 (Geometric entity level Entire geometry), set Element size to Custom and:

    • Maximum element size: 0.0025

    • Minimum element size: 2.5e-6

    • Curvature factor: 0.3

    • Resolution of narrow regions: 1

    • keep Maximum element growth rate at 1.3.

  3. In Size 2, set Geometric entity level to Point and select the point at r = a, z = 0 (the disc edge). Set Element size to Custom, Maximum element size 5e-6, Minimum element size 2.5e-6.

  4. Click Mesh  Size again for Size 3. Set Geometric entity level to Boundary, select the disc (boundary 2), Element size Custom, Maximum element size 4e-5, Minimum element size 2.5e-6.

  5. Click Mesh  Build Mesh.

Free triangular mesh refined at the disc electrode
Figure 5. The mesh: coarse in the bulk, graded down to a few micrometres at the disc edge
The Maximum element growth rate grades the local sizes into the domain. Without it, a refined disc edge sits inside coarse elements; during development that put the disc resistance off by 6 to 46 %.

Compute and evaluate

  1. Compute (Ctrl+=).

  2. Click Results  Global Evaluation and enter two expressions:

    • cd.es1.Itot, description Disc current

    • 1/cd.es1.Itot, description Resistance V/I (the disc is at 1 V)

  3. Click Evaluate.

Global Evaluation of the disc current and resistance
Figure 6. Electrolyte potential, concentrated around the disc, and the disc current and resistance

  1. Click Results  Surface Integration. In a 2D model this boundary integral is called Line Integration. Select the disc boundary, enter cd.iloc and click Evaluate. Compute integral in revolved geometry is on by default, so the result is the disc current again.

Check the results

  • cd.es1.Itot = 0.020445 A and V/I = 48.911 Ω, against 48.939 Ω from the formula: about 0.06 % low. The regression test requires better than 0.5 %.

  • The Line Integration of cd.iloc over the disc, in the revolved geometry, equals cd.es1.Itot (the test requires 1e-9).

  • cd.es1.Itot already includes the factor 2π of the revolution: Elmer’s axisymmetric loads are per radian.

Tutorial 3: tertiary current distribution in a Nernst layer

This model adds a concentration to the kinetics. The same 1D cell geometry idea is used: an anode at the bottom, a reference at φl = 0 at the top, L = 200 µm apart. The first δ = 2 µm above the anode are a Nernst diffusion layer; above it the bulk is well mixed at concentration cb.

  • Kinetics are linear: iloc = (σ/Λ) η, a charge-transfer resistance Λ/σ with Λ = 15 µm.

  • The dissolved product (ν = 1, n = 2) accumulates in the layer and raises the equilibrium potential by the linearized Nernst term \(E_{eq} = \frac{RT}{nF}\,\frac{c-c_b}{c_b}\).

  • cb is chosen so that the concentration resistance equals that of a layer βδ thick, with β = 2.

Three resistances in series give

\[i = \frac{\sigma V}{L + \Lambda + \beta\delta},\qquad \beta = \frac{\sigma R T}{n^2F^2 D c_b}\]

With σ = 20 S/m, V = 0.02 V and D = 1e-9 m²/s, that is i = 1826.48 A/m². Without the concentration term it would be 1860.47 A/m².

Create the model

  1. File  New, Model Wizard, 2D.

  2. Add Electrochemistry > Primary and Secondary Current Distribution > Secondary Current Distribution and Chemical Species Transport > Transport of Diluted Species.

  3. Choose Stationary and click Done.

  4. In Parameters 1, enter:

    Name Expression Description

    sig

    20[S/m]

    Electrolyte conductivity

    Vc

    0.02[V]

    Electrode potential

    Lam

    15e-6[m]

    Polarization length Λ

    Dc

    1e-9[m^2/s]

    Diffusion coefficient

    nel

    2

    Electrons per reaction

    cb

    665.712[mol/m^3]

    Bulk concentration (β = 2)

    Tk

    298.15[K]

    Temperature

  5. Add two rectangles with Geometry  Rectangle:

    • Rectangle 1 (Nernst layer): Width 20e-6, Height 2e-6.

    • Rectangle 2 (bulk): Width 20e-6, Height 198e-6, y 2e-6.

  6. Press F8. The geometry has two domains that share the boundary at y = δ.

Current distribution

  1. In Electrolyte 1, set Electrical conductivity to User defined and sig.

  2. With Secondary Current Distribution selected, choose Physics  Boundaries  Electrode Surface and select the bottom boundary (y = 0). The Physics ribbon adds features to the interface that is selected in the Model Builder, or that contains the selected feature. Set:

    • Electric potential (of the electrode): Vc

    • Kinetics expression type: User defined i(eta)

    • Local current density i(eta): sig/Lam*eta

    • Equilibrium potential: R_const*Tk/(nel*F_const)*(c-cb)/cb

  3. Add an Electrolyte Potential on the top boundary (y = 200 µm), 0[V].

Species transport

  1. Select Transport of Diluted Species. In Domain Selection, choose Manual and keep only the thin lower domain, the Nernst layer.

  2. In Transport Properties 1, set Diffusion coefficient to Dc.

  3. In Initial Values 1, set Concentration to cb.

  4. Right-click Transport of Diluted Species and choose Boundaries > Electrode Surface Coupling. Select the anode (y = 0) and set:

    • Electrode surface (name of a Current Distribution feature): es1

    • Stoichiometric coefficient: 1

    • Number of participating electrons: nel

  5. With Transport of Diluted Species selected, add Physics  Boundaries  Concentration on the boundary between the layer and the bulk (y = δ), with Concentration cb.

Study and compute

  1. Select Step 1: Stationary and set Max coupling iterations to 100 and Coupling tolerance to 1e-11. Keep Coupling damping factor at 1.

  2. Compute.

  3. Evaluate cd.es1.Itot with a Global Evaluation.

  4. Click Results  Volume Maximum (in 2D: Surface Maximum), select the Nernst layer domain and evaluate c.

Check the results

  • cd.es1.Itot = 0.0365297 A/m, that is 1826.48 A/m² over the 20 µm width, equal to σV/(L + Λ + βδ) to 1e-8.

  • The maximum of c, on the anode, is cb + iδ/(nFD) = 684.64 mol/m³ (the test requires 1e-6).

  • The current is 1.8 % below σV/(L + Λ): the concentration resistance is there.

If a coupled model oscillates instead of converging, lower the Coupling damping factor. A loop gain G > 1 between the two interfaces needs a factor below 2/(1 + G).

Tutorial 4: current modulation over a sinusoidal anode

A wavy anode y = a cos(kx), with amplitude a = 1 µm and wavelength λ = 100 µm, faces a flat counter electrode L = 200 µm away. For a primary distribution and a small amplitude, Wagner’s analysis gives a current density of the form i0(1 + m cos kx), with

\[m = a\,k\coth(kL),\qquad k = \frac{2\pi}{\lambda}\]

Here m = 0.06283: the crests, nearer the counter electrode, carry 6.3 % more than the mean.

Geometry from a parametric curve

  1. Create a 2D model with Secondary Current Distribution and a Stationary study.

  2. Select Geometry 1 and set Length unit to µm.

  3. In Parameters 1, add lam = 100, a0 = 1 and L = 200. Plain numbers in geometry settings are in the geometry length unit.

  4. Click Geometry  Parametric Curve. Keep Parameter name s from 0 to 1, and set x to lam*s, y to a0*cos(2*pi*s) and Number of interpolation points to 81.

  5. Click Geometry  Polygon. Set Type to Open curve, x to lam lam 0 0 and y to a0 L L a0. The polygon runs from the end of the wave up the right side, across the top and down the left side to the start of the wave.

  6. Click Geometry  Convert to Solid and select the curve and the polygon as Input objects.

  7. Press F8. The geometry has 1 domain, 4 boundaries and 4 points: the wavy anode (boundary 1), the left side (2), the top (3) and the right side (4).

Physics and mesh

  1. Set Current distribution type to Primary and Electrical conductivity in Electrolyte 1 to User defined, 20[S/m].

  2. Add an Electrode Surface on the anode with Electric potential (of the electrode) 0[V].

  3. Add an Electrolyte Potential on the top with -0.02[V].

  4. Click Mesh  Mapped. The mesh becomes user-controlled with Size 1, Free Triangular 1 and Mapped 1. Select Free Triangular 1 and press Delete.

  5. Add three Distribution nodes with Mesh  Distribution:

    • anode and top (boundaries 1 and 3): Number of elements 80;

    • right side (4): Number of elements 60, Element ratio 20;

    • left side (2): Number of elements 60, Element ratio 20, Reverse direction on.

  6. Build the mesh (Mesh  Build Mesh). Opposite sides have the same counts, as a Mapped mesh requires. The element ratio grades both sides so that the smallest elements are at the anode; if the Graphics window shows the grading the wrong way on a side, toggle its Reverse direction. It has 80 × 60 = 4800 quadratic quadrilaterals; Mesh  Statistics shows the counts.

Compute and check the results

Compute, then evaluate cd.es1.Itot with a Global Evaluation.

  • cd.es1.Itot = 0.2000 A/m, the flat-cell value σ·0.02 V/L·λ, to 0.02 % (the test requires 0.1 %).

  • The nodal cd.iloc on the anode ranges from about 1875 A/m² in the troughs to 2126 A/m² on the crests.

  • The regression test fits i0 + i1 cos kx through the anode values: i1/i0 matches a k coth(kL) = 0.06283 within 0.02 % (the test requires 0.2 %).

To sweep the amplitude, for example a0 = 1 0 µm, select the electrodes with Box Selections (Geometry  Box Selection, y maximum L/2 for the anode, y minimum L/2 for the top) instead of boundary numbers. A change of shape can renumber the boundaries (the regression test sees this when the amplitude of a wavy anode goes to zero); Box Selections are re-evaluated on every run’s geometry. See Electrochemistry: current distribution.
